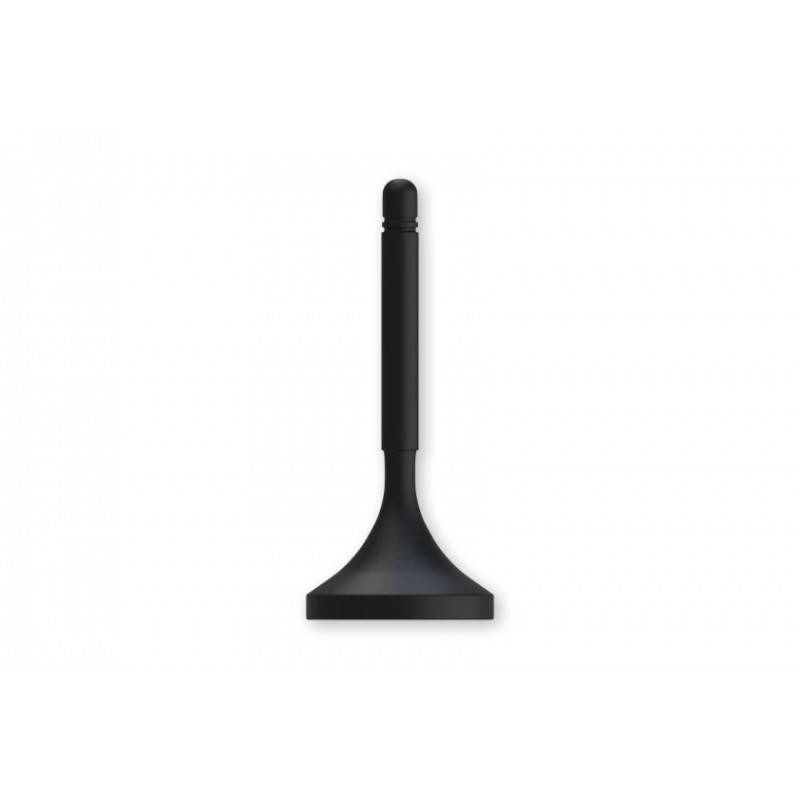

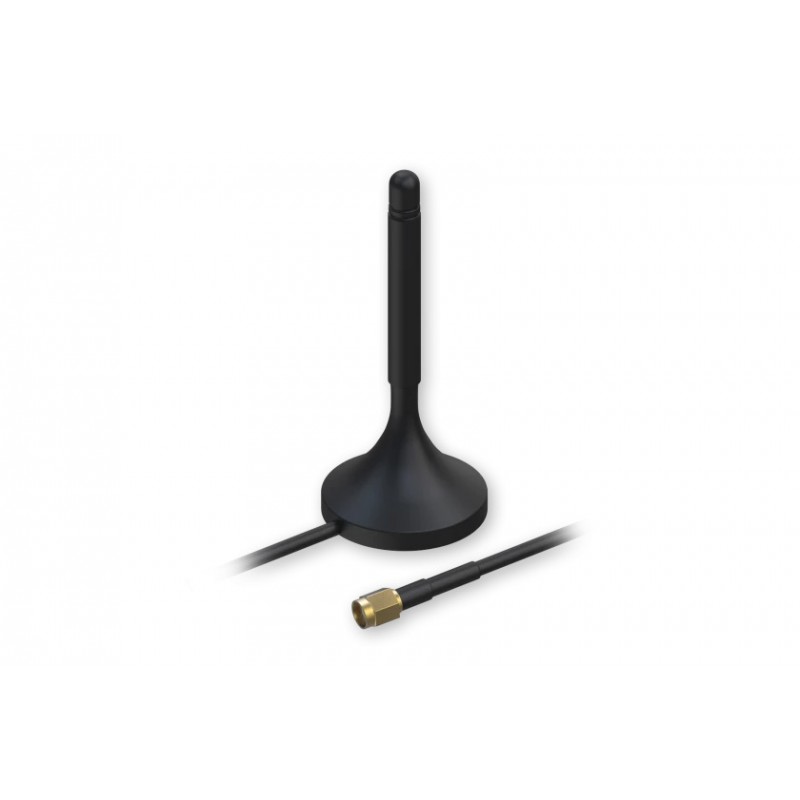

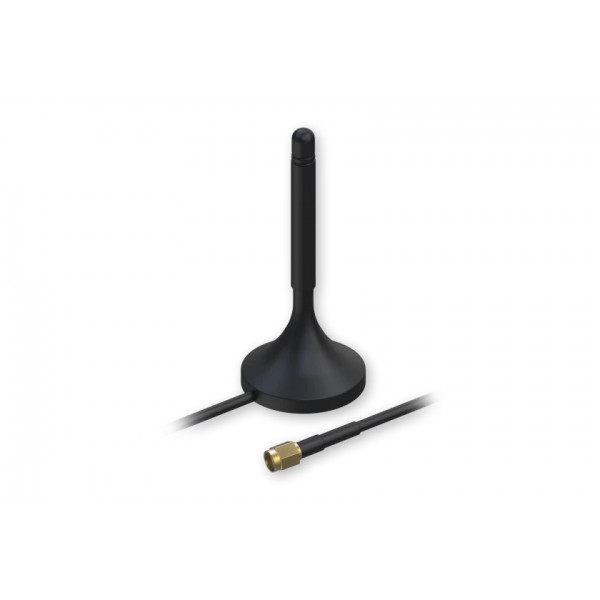

5G MOBILE MAGNETIC SMA ANTENNA
Click imagine pentru galerie
| PARAMETER | |
| Cable | RG-58, 3000 mm |

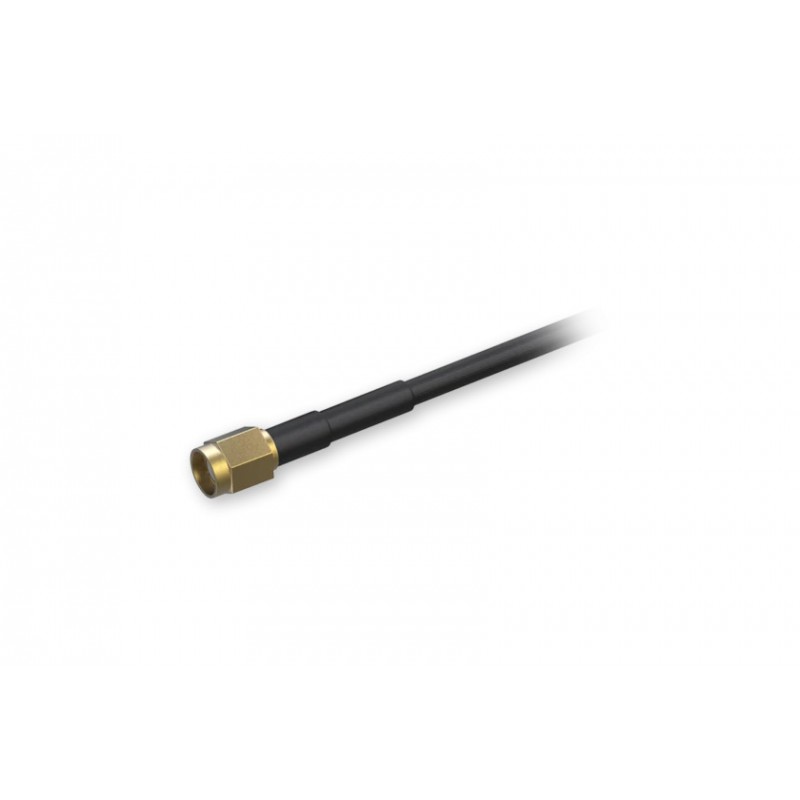

| Connector type | SMA Male |
| Frequency range | 617 ~ 960, 1400 ~ 2690, 3300 ~ 5900 MHz |
| Gain | 3.6 dBi |
| Impedance | 50 Ω |
| IP rating | IP33 |
| Maximum power | 20 W |
| Mounting method | Magnet |
| Operating temperature | –20 °C ~ +65 °C |
| Polarization | Linear |
| Radiation pattern type | Omnidirectional |
| RoHS compliant | ✓ |
| VSWR | 3.5 |
| Weight | 150 g |
