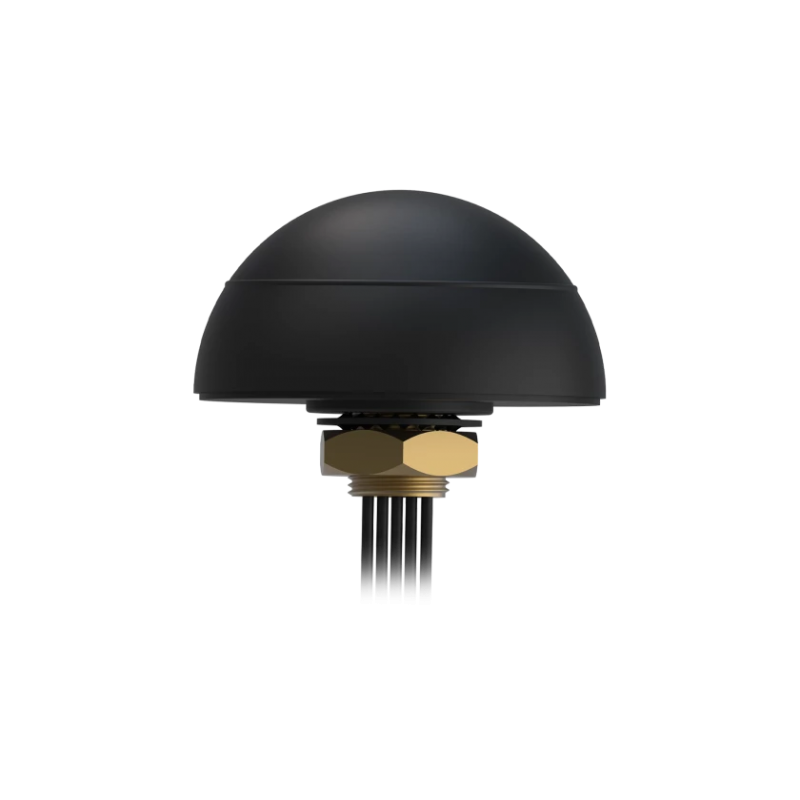

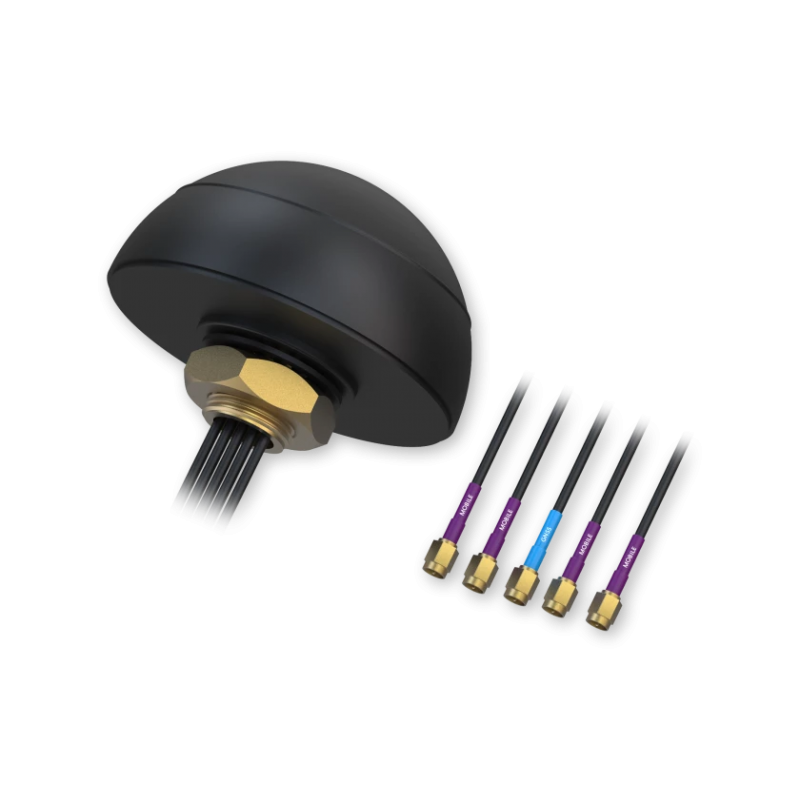

COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA
Click imagine pentru galerie
| GNSS ANTENNA | |
| Connector type and count | SMA Male |
| Current Consumption | 15 mA |
| Frequency range | 1575 MHz |
| Impedance | 50 Ω |
| LNA Gain | 28 ± 2 dB |
| Polarization | RHCP |
| Supply voltage | 3.0 – 5.0 VDC |
| LTE MIMO ANTENNA | |
| Connector type | 4x SMA Male |
| Frequency range | 698 ~ 960, 1710 ~ 2690 MHz |
| Gain | 3.0 dBi |
| Impedance | 50 Ω |
| Polarization | Linear |
| VSWR | 3.0 |
| MECHANICAL/ENVIRONMENTAL | |

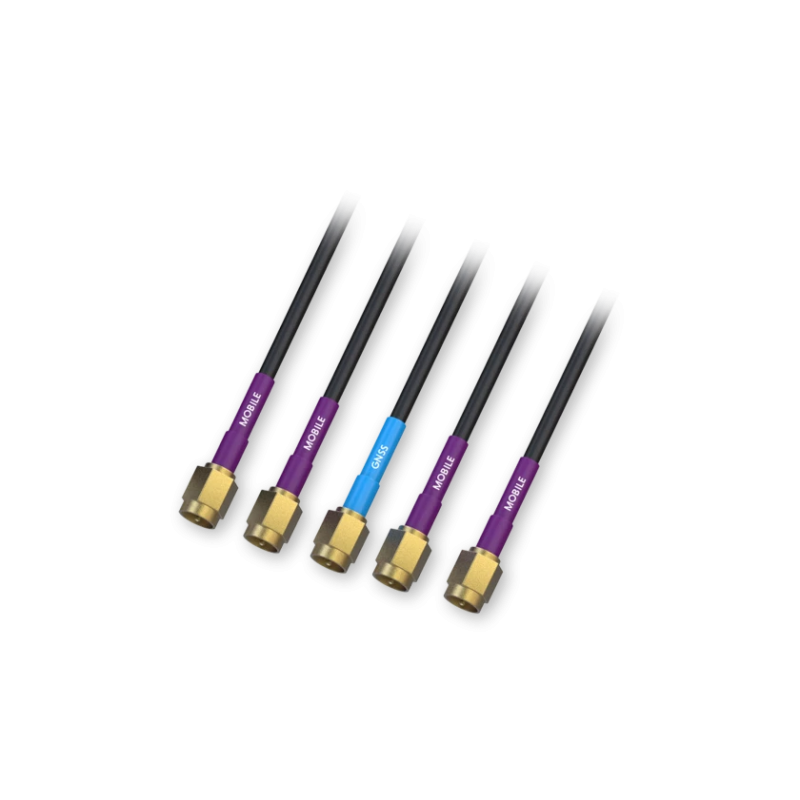

| Cable | 5x RG174, 3000 mm |
| Operating temperature | –40 ⁰C ~ +85 ⁰C |
| Radome ingress projection rating | IP65 |
| Radome material | Black ABS |
| RoHS Compliant | ✓ |
| Weight | 540 g |
| PARAMETER | |
| LNA VSWR | 2.0 |
| Operating relative humidity | 95 % |
